Kopling Grid Lancip
>
|
| Tempat asal | cangzhou, cina |
| Nama merek | jude |
| Sertifikasi | CE、ISO |
| Nomor model | Kopling Grid T10 T20 |

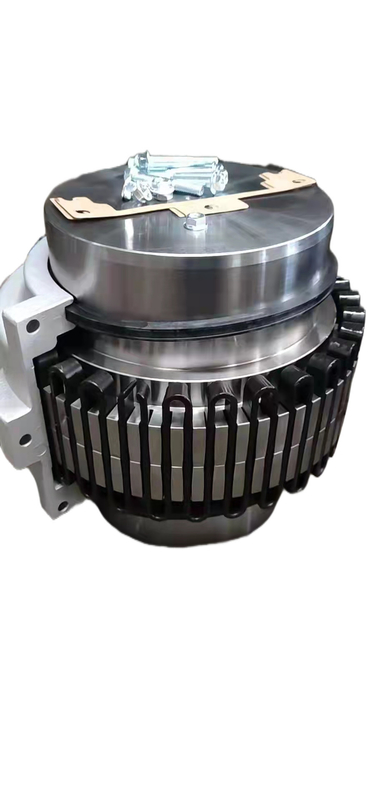

T10 T20 Flex Taper Grid Coupling Standar 45 # Baja Bersertifikat ISO9001
Fitur Taperkopling jaringan T10 T20 :
1. Desain penutup split horizontal, ideal untuk ruang terbatas
2. Memungkinkan akses mudah ke pegas grid
3. Sangat cocok untuk membalikkan aplikasi
4. Penutup kisi aluminium die-cast yang ringan
5. Dirancang untuk kemudahan perawatan dan penggantian pegas grid
6. Pegas grid tarik tinggi memastikan kinerja kopling yang unggul dan masa pakai kopling yang lebih lama
7. Dapat dipertukarkan dengan kopling grid standar industri
| Ukuran | Torsi Tn Nm | Kecepatan [n] rpm | Bore d mm | Panjangnya | Total | L2 mm | D mm | D0 mm | Celah | Berat tanpa bor kg | Kelembaman | Pelumas |
| L mm | LO mm | C mm | kg.m2 | kg | ||||||||
| 1020T10 | 52 | 4500 | 28 | 47.6 | 98.2 | 66.7 | 97 | kan | 3 | 1.95 | 0,0014 | 0,027 |
| 1030T10 | 149 | 4500 | 35 | 47.6 | 98.2 | 68.3 | 105.7 | kan | 3 | 2.59 | 0,0022 | 0,041 |
| 1040T10 | 249 | 4500 | 42 | 50.8 | 104.6 | 69.9 | 114.3 | kan | 3 | 3.36 | 0,0033 | 0,054 |
| 1050T10 | 435 | 4500 | 50 | 60.3 | 123.6 | 80.9 | 135.1 | kan | 3 | 5.44 | 0,0073 | 0,068 |
| 1060T10 | 684 | 4350 | 56 | 63.5 | 130 | 93.5 | 157.8 | kan | 3 | 7.26 | 0,0119 | 0,036 |
| 1070T10 | 994 | 4125 | 65 | 76.2 | 155.4 | 96.8 | 158.8 | kan | 3 | 10.44 | 0,0185 | 0.113 |
| 1080T10 | 2050 | 3600 | 80 | 88.9 | 180.8 | 115.6 | 190.5 | kan | 3 | 17.7 | 0,0451 | 0,172 |
| 1090T10 | 3730 | 3600 | 95 | 98.4 | 199.8 | 122.2 | 211.1 | kan | 3 | 25.4 | 0,0787 | 0,254 |
| 1100T10 | 6280 | 2440 | 110 | 120.6 | 246.2 | 155.4 | 251 | kan | 5 | 42.2 | 0,178 | 0,426 |
| 1110T10 | 9320 | 2250 | 120 | 127 | 259 | 161.5 | 269.7 | kan | 5 | 54.4 | 0.27 | 0,508 |
| 1120T10 | 13700 | 2025 | 140 | 149.2 | 304.4 | 191,5 | 307.8 | kan | 6 | 81.2 | 0,514 | 0,735 |
| 1130T10 | 1990 | 1800 | 170 | 161.9 | 329.8 | 195.1 | 345,9 | kan | 6 | 121 | 0,959 | 0,908 |
| 1140T10 | 28600 | 1650 | 200 | 184.2 | 374.4 | 201.2 | 384 | kan | 6 | 178 | 1.85 | 1.135 |
| 1150T10 | 39800 | 1500 | 215 | 182,9 | 371.8 | 271.5 | 453.1 | 391.2 | 6 | 227 | 3.49 | 1.952 |
| 1160T10 | 55900 | 1350 | 240 | 198.1 | 402.2 | 278.4 | 501.9 | 436.9 | 6 | 309 | 5.82 | 2.815 |
| 1170T10 | 74600 | 1225 | 280 | 215.9 | 437.8 | 307.3 | 566.9 | 487.2 | 6 | 448 | 10.4 | 3.496 |
| 1180T10 | 103000 | 1100 | 300 | 238.8 | 483.6 | 321.1 | 629.9 | 554.7 | 6 | 619 | 18.3 | 3.768 |
| 1190T10 | 137000 | 1050 | 335 | 259.1 | 524.2 | 325.1 | 675.6 | 607.8 | 6 | 776 | 26.1 | 4.4 |
| 1200T10 | 186000 | 900 | 360 | 279.4 | 564.8 | 355.6 | 756.9 | 660,4 | 6 | 1057 | 43.5 | 5.63 |
| 1210T10 | 249.000 | 820 | 390 | 301.8 | 622.6 | 431.8 | 844.6 | 750.8 | 13 | 1424 | 75.5 | 10.53 |
| 1220T10 | 336000 | 730 | 420 | 325.1 | 663.2 | 490.2 | 920.8 | 822.2 | 13 | 1785 | 113 | 16.07 |
| 1230T10 | 435000 | 680 | 450 | 345.4 | 703,8 | 546.1 | 1003.3 | 904.7 | 13 | 2267 | 175 | 24.06 |
| 1240T10 | 559000 | 630 | 480 | 368.3 | 749.6 | 647.7 | 1087.1 | kan | 13 | 2950 | 339 | 33.82 |
| 1250T10 | 746000 | 580 | 510 | 401.3 | 815.6 | 698.5 | 1181.1 | kan | 13 | 3833 | 524 | 50.17 |
| 1260T10 | 932000 | 540 | 550 | 431.8 | 876.6 | 762 | 1260,9 | kan | 13 | 4682 | 7111 |
67.24
|
